TW 230HB LIGHTWEIGHT AND POWERFUL

IDEAL CHIPPER FOR TREE SURGEONS

Timberwolf’s range of road towable 6″ hydraulic wood chippers are our most popular ‘all round’ choice.

The versatility means our TW 230HB can be used effectively across a range of applications and conditions including landscaping, tree surgery and contract work.

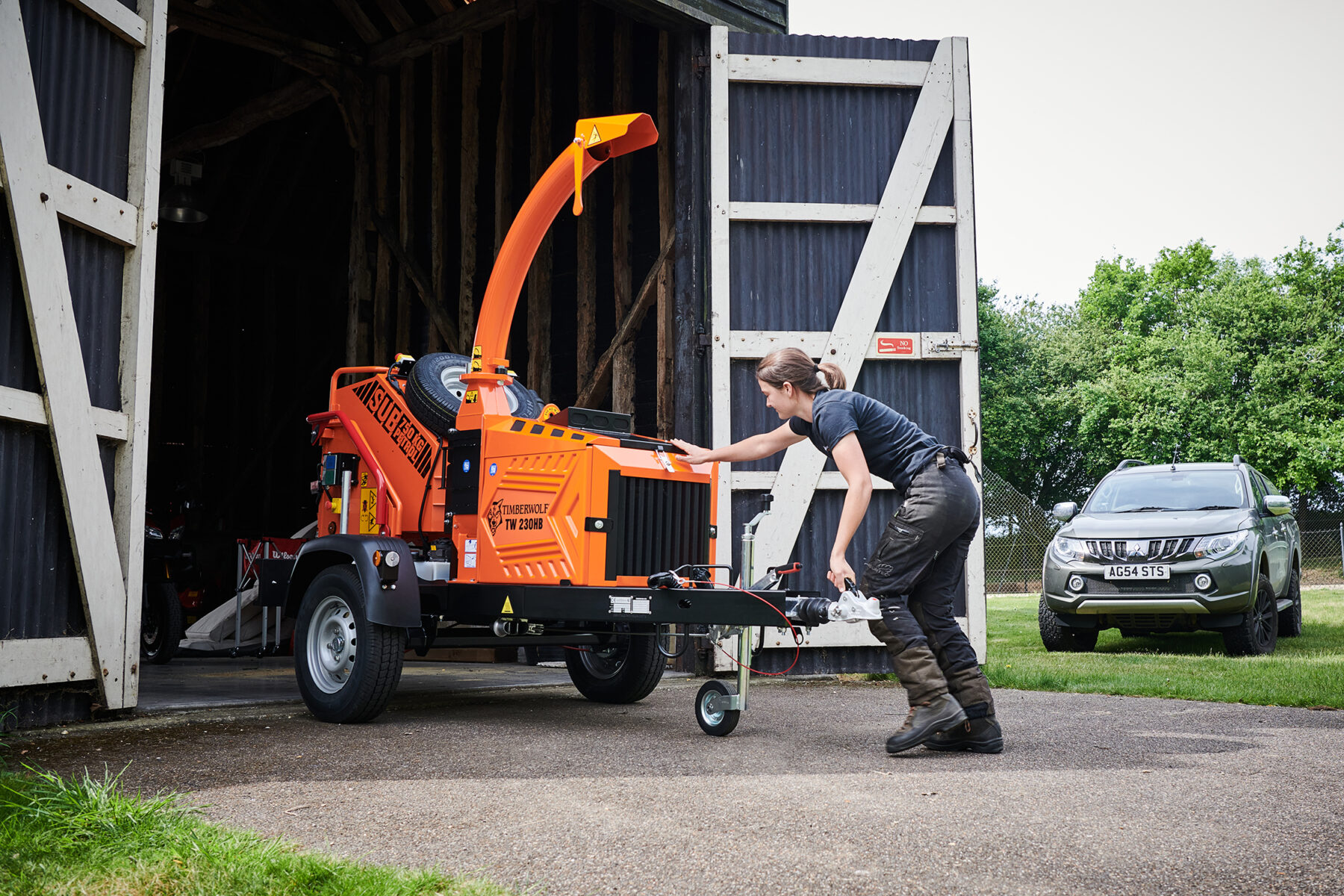

TW 230HB petrol wood chipper

PETROL VS DIESEL

The TW 230HB is available with a choice of a high-powered Briggs & Stratton Vanguard V twin petrol engine or high-torque Kubota V1505 diesel engine.

VIEW DATASHEET

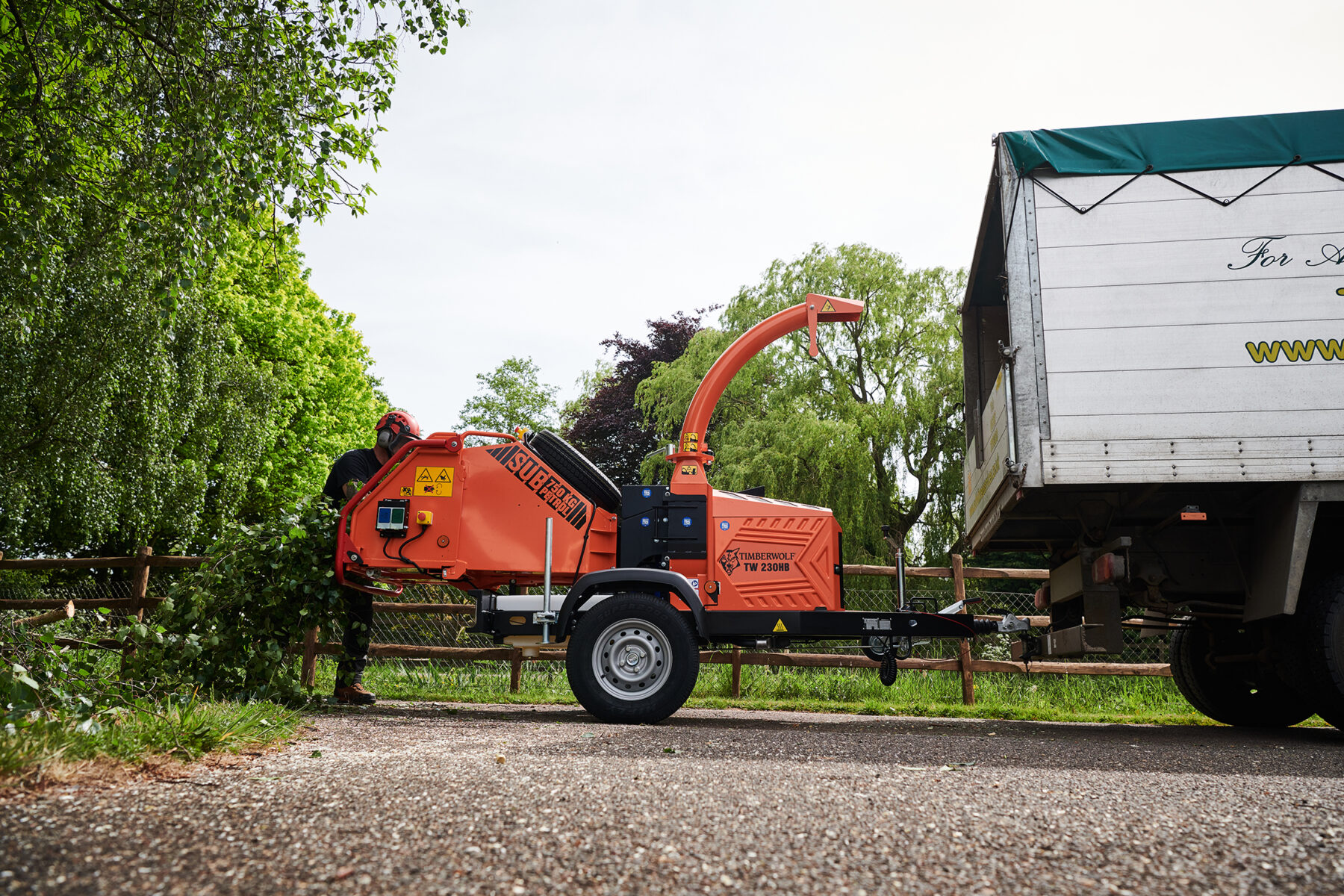

ROAD TOW WOOD CHIPPER

Renowned for its superior performance, reliability, longevity and easy servicing, the TW 230HB wood chipper is our best selling 6″ road tow wood chipper – unbeatable in its class.

FEATURES AND BENEFITS

TIMBERWOLF WARRANTY INCLUDED

Like all Timberwolf wood chippers, the TW 230HB comes with a standard 3-year warranty with the option to extend to a further 5-years for extra peace of mind.

DOWNLOAD BROCHURE
TECHNICAL SPECIFICATION

TW 230HB

ENGINE37HP BRIGGS & STRATTON OR 24.8HP KUBOTA
FUELPETROL OR DIESEL
TANK CAPACITY18 LITRES
WEIGHT683KG (PETROL) OR 749KG (DIESEL)
HEIGHT2213MM (PETROL) OR 2220M (DIESEL)
HEIGHT (WITH DISCHARGE CHUTE REMOVED)1527MM (PETROL) OR 1496MM (DIESEL)
LENGTH (TRAY DOWN)3786MM (PETROL) OR 3810MM (DIESEL)
LENGTH (TRAY UP)3248MM (PETROL) OR 3285MM (DIESEL)
WIDTH1520MM (PETROL) OR 1530MM (DIESEL)
FEED METHODTWIN HYDRAULIC ROLLERS C/W AUTO FEED CONTROL
MAXIMUM DIAMETER INFEED160MM (6 1/4")
DISCHARGE CHUTE280° ADJUSTABLE DISCHARGE
BLADES2 X 135MM DOUBLE SIDED, FULLY HARDENED
TW 230HB FEATURE AND BENEFITS

WHY CHOOSE THE TW 230HB

  • Processing throughput of up to 5 tonnes/hr
  • 37hp Briggs & Stratton petrol or 24.8hp Kubota diesel engine options
  • Class-leading 230mm x 160mm infeed opening (6 1/4″ cutting performance)
  • Quad force rollers for ultimate grip, crushing and infeed power
  • Sub 750kg – lightweight and manoeuvrable
  • Dual, ergonomic heavy duty infeed controls
  • 280° adjustable discharge chute
  • Patented exhaust cooler reduces exhaust temperatures up to 170°c*
  • WolfPort blade access and removeable side panels for easy maintenance and servicing accessibility
  • Double-sided reversible blades
  • Timberwolf reliability and simplicity built-in
  • 3-year warranty as standard with optional 5-year extended warranty

*Applicable to the TW 230HBP model only

KEY FEATURES OF THE TW 230HB

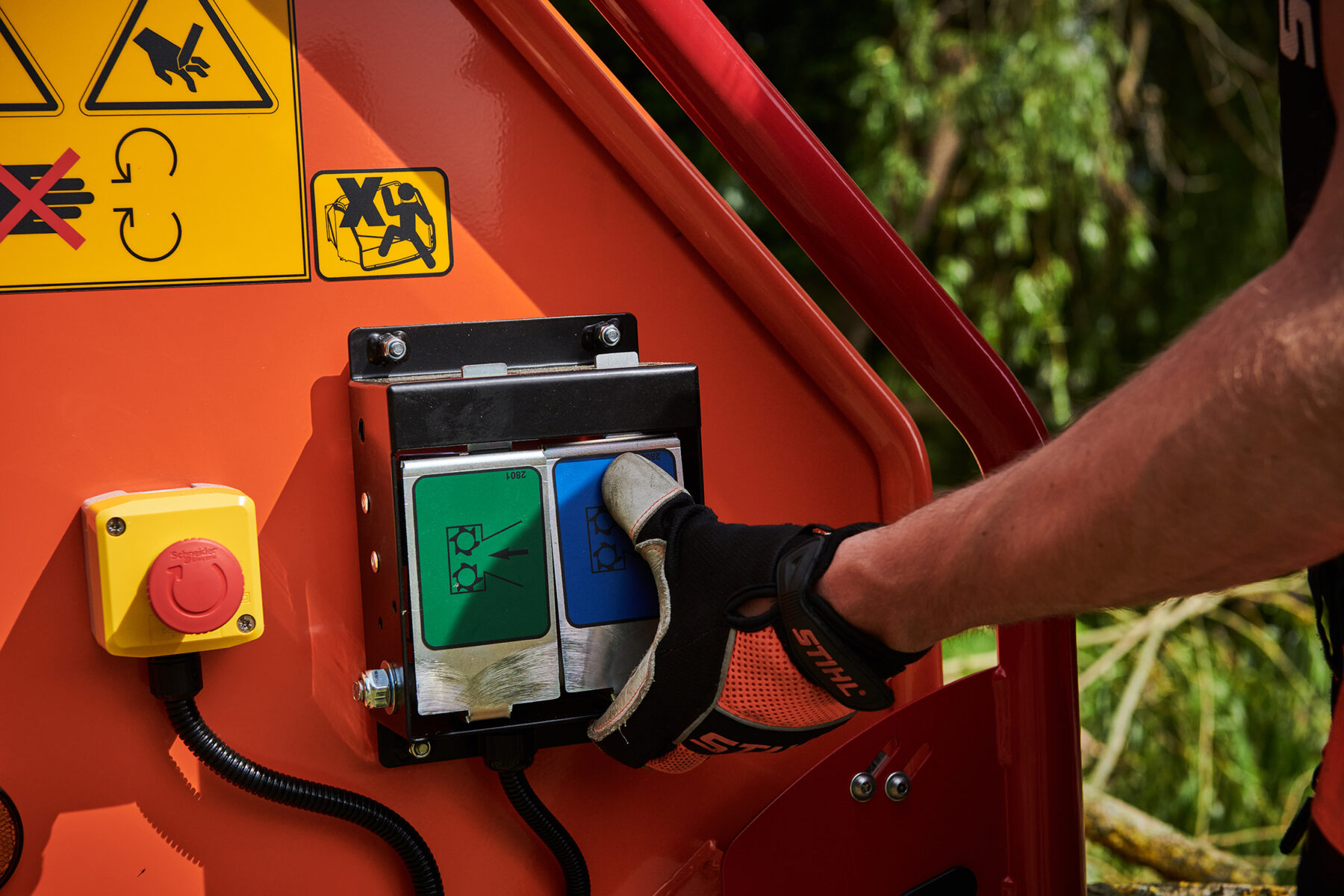

HEAVY DUTY INFEED CONTROLS

Kitted out with our dual, ergonomic heavy duty infeed controls to give you ultimate control over your wood chipper

EASY TO MANOEUVRE

Weighing in at under 750kg, the TW 230HB is lightweight and manoeuvrable making it easy to move from job to job.

QUAD FORCE ROLLERS

Quad force rollers are fitted to all our hydraulic wood chippers to give the ultimate gripping and crushing power

  • WOLFPORT

    WolfPort access makes it quick and easy for you to change your double-sided reversible blades

  • PATENTED EXHAUST

    Patented exhaust cooler reduces exhaust temperatures up to 170°

  • EASY TO MAINTAIN

    Removeable side panels for easy maintenance and servicing accessibility, as well as centralised greasing points for your daily checks

  • TIMBERWOLF QUALITY GUARANTEED

    All Timberwolf wood chippers come with 3 years warranty as standard.
