TW 280FTR DIESEL 8" Wood Chipper | Timberwolf

TW 280FTR DIESEL LEADER OF THE PACK

IDEAL CHIPPER FOR ARBORISTS AND CONTRACTORS

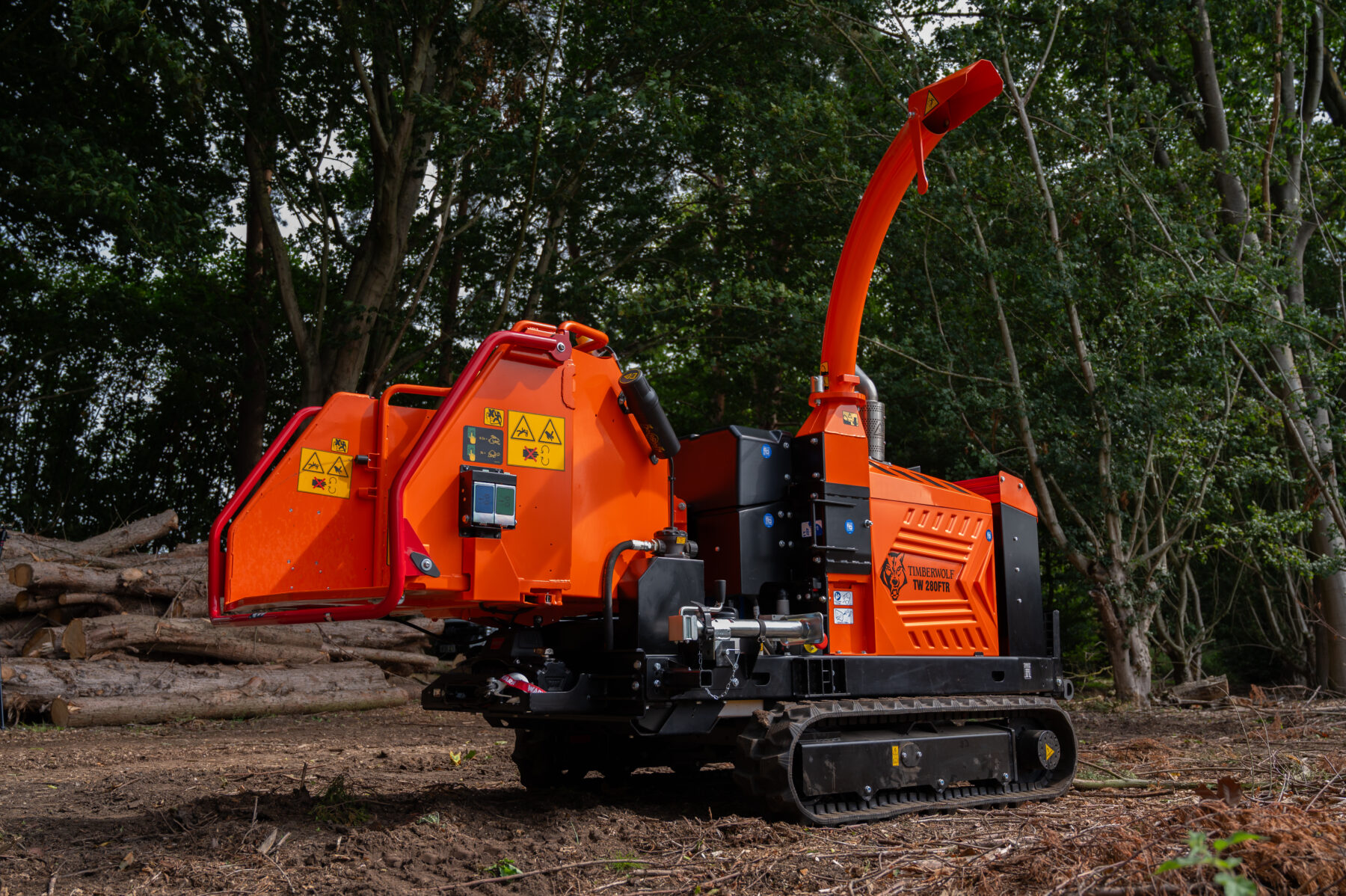

Meet the TW 280FTR DIESEL, 8″ tracked wood chipper kitted with a 55hp Hyundai 3-cylinder diesel engine.

Designed with contractors in mind, this 8″ tracked machine is unbeatable on power and efficiency.



TW 280FTR DIESEL

EASY TO USE

New features of the TW 280FTR DIESEL include an intuitive HMI display screen, intelligent infeed design and enhanced throttle positioning making it easy to use!

VIEW DATASHEET

EASY TO OWN

Belt tension checks are a low maintenance job on the TW 280FTR DIESEL thanks to the improved design, our wood chippers are easy to own!

FEATURES AND BENEFITS

TIMBERWOLF WARRANTY INCLUDED

Like all Timberwolf wood chippers, the TW 280FTR DIESEL comes with a standard 3-year warranty with the option to extend to a further 5-years for extra peace of mind.

DOWNLOAD BROCHURE
TECHNICAL SPECIFICATION

TW 280FTR DIESEL

ENGINEHYUNDAI 3-CYLINDER TURBO DIESEL
STARTING METHODELECTRIC
FUELDIESEL
TANK CAPACITY36 LITRES
WEIGHT1802KG (WITHOUT WINCH)
HEIGHT2317MM (1678MM WITH DISCHARGE CHUTE REMOVED)
LENGTH2882MM (TRAY AND STEP UP) 3665MM (TRAY AND STEP DOWN)
WIDTH1460MM
MAXIMUM DIAMETER INFEED210MM (8 1/4")
FEED METHODTWIN SERIES HYDRAULIC QUAD FORCE ROLLERS
AUTO BACK-OFF FUNCTIONSINCLUDED
BLADES2 X 158MM QUICK ACCESS, DOUBLE SIDED, FULLY HARDENED, REVERSIBLE BLADES
DISCHARGE CHUTE285° ADJUSTABLE DISCHARGE

WHY CHOOSE THE TW 280FTR DIESEL

FEATURES

  • Hyundai 3-cylinder turbo diesel engine (55hp)
  • Ergonomically positioned HMI display screen
  • Zero maintenance blade to anvil gap
  • Bluetooth connectivity through App based platform for comprehensive machine troubleshooting
  • 225mm ground clearance
  • Anti-vibration folding operator control platform
  • WolfTrack Dual Speed Tracking System (Low speed: 2.5kph, High speed: 5kph)
  • Integrated track recovery system
  • Class leading 280mm x 210mm infeed opening (8 1/4″ cutting performance)
  • Quad force rollers for ultimate grip, crushing and infeed power
  • 2x quick access double-sided reversible blades
  • Dual, ergonomic heavy duty infeed controls
  • Adjustable discharge chute
  • Centralised grease point

BENEFITS

  • Enhanced operator diagnostics for easy troubleshooting
  • Intuitive display to support operation and simple DPF regeneration
  • Updated throttle controls within the operator zone
  • Extra large infeed aperture for accessible chipping
  • Timberwolf – easy to use, easy to own

OPTIONAL EXTRAS

  • WARN recovery winch offering wireless remote control for safe recovery
  • LED Ground Illumination Kit, making it easier to load/unload and manoeuvre in low light conditions*



*LED lighting not intended to be used whilst chipping

KEY FEATURES OF THE TW 280FTR DIESEL

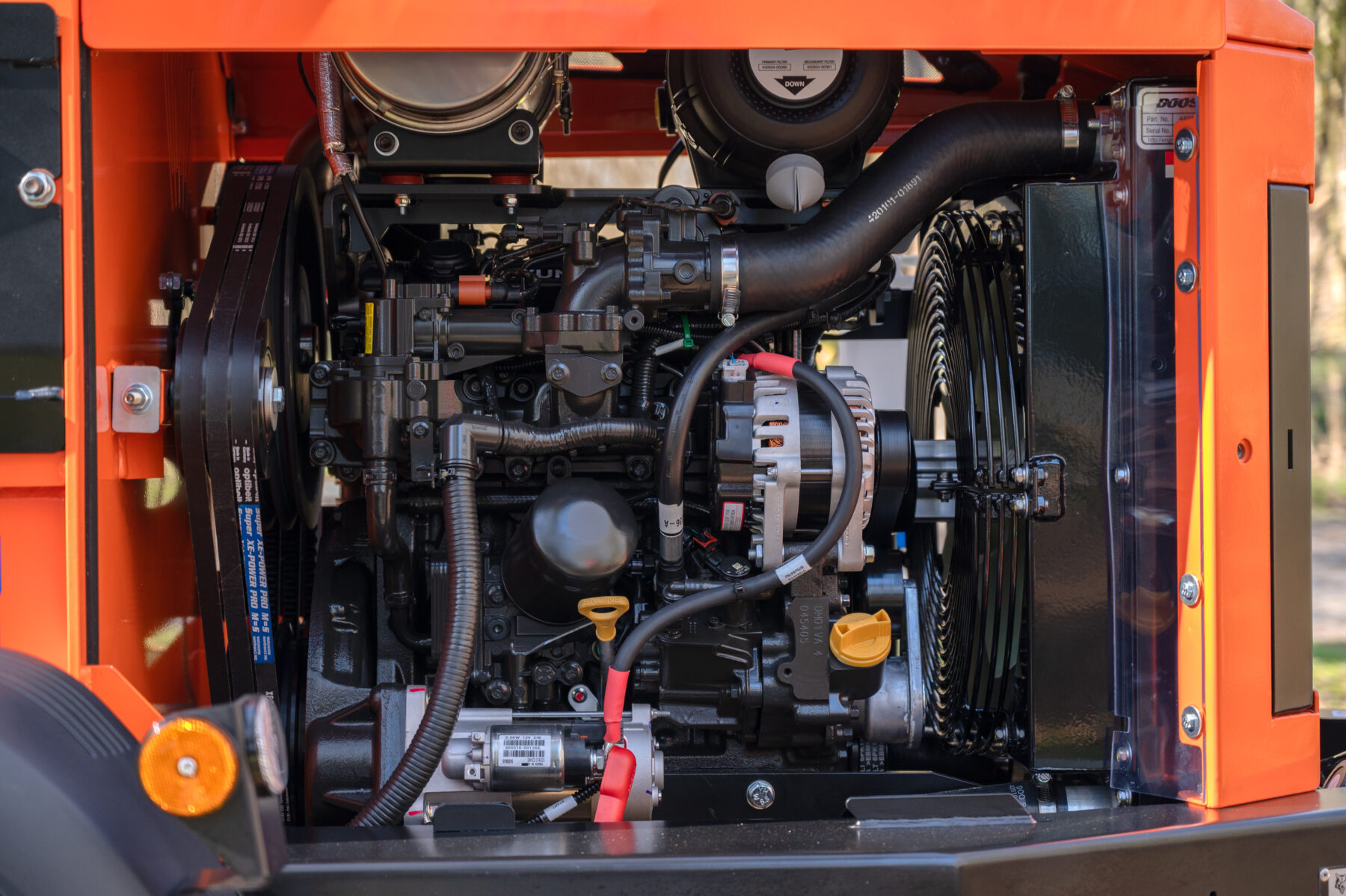

ENGINE BAY ACCESS

With two easy-to-remove side panels, you have instant access to the engine bay of your machine to performance your weekly maintenance checks.

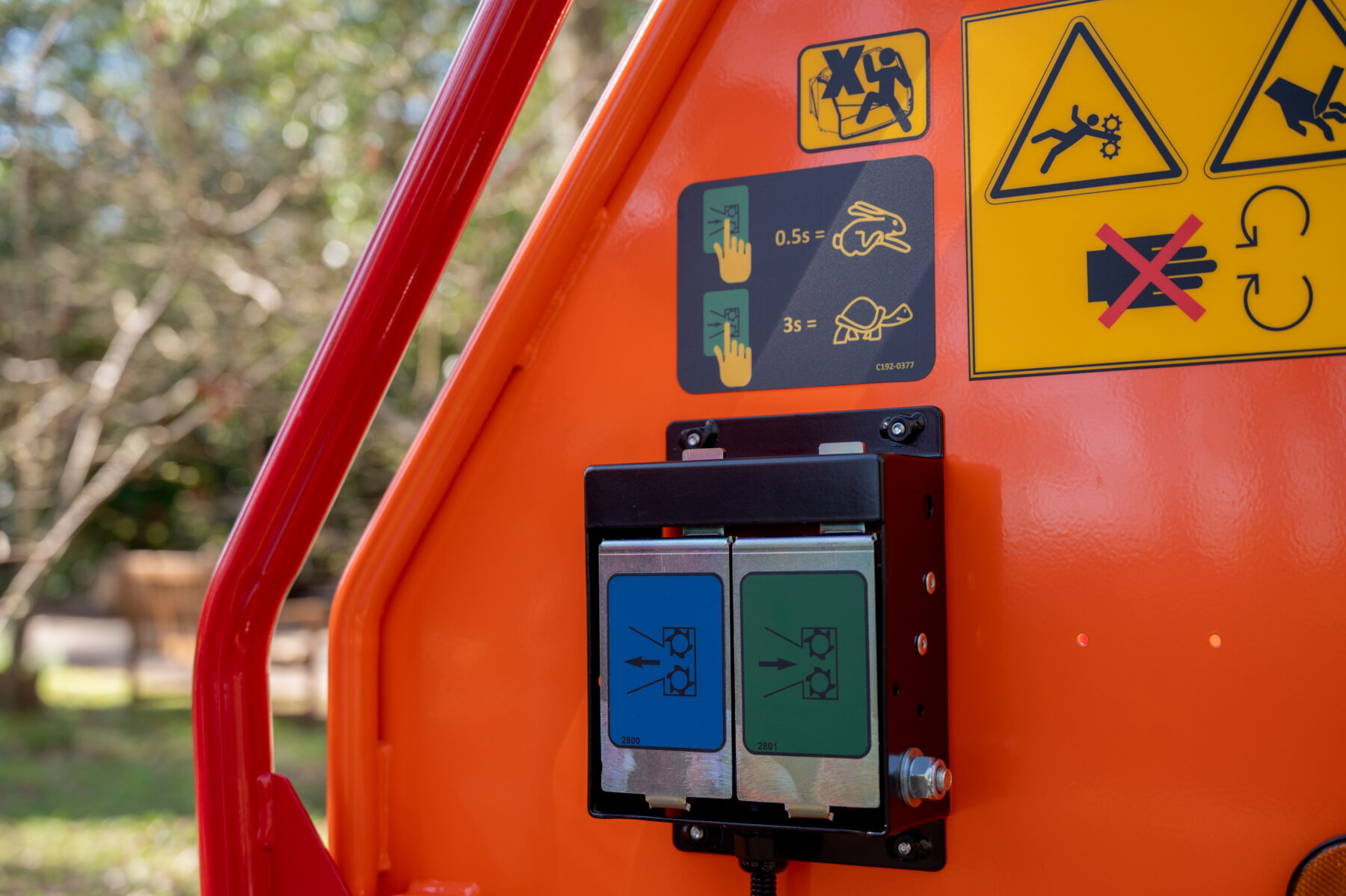

HEAVY DUTY INFEED CONTROLS

With the throttle control integrated into the ergonomic heavy duty infeed controls, you have ultimate control over your wood chipper when you need it most.

WOLFTRACK

WolfTrack Fixed Tracked Dual Speed tracking systems means that operator comfort and safety is engineered in harmony to help you negotiate difficult terrain in a low-speed gear and a higher-speed to cover distance efficiently.

  • WOLFPORT

    WolfPort access makes it quick and easy for you to change your double-sided reversible blades

  • QUAD FORCE ROLLERS

    Quad force rollers are fitted to our TW 230 and TW 280 ranges to give them ultimate gripping and crushing power

  • ZERO BLADE TO ANVIL GAP

    With zero blade to anvil gap removing the need to spend time shimming to ensure optimal chipping performance

  • CENTRALISED GREASING POINTS

    All Timberwolf machines feature our centralised greasing points making your daily maintenance check easier

TW 280FTR DIESEL
  • INDUSTRY PROVEN POWER

    - Hyundai 55hp diesel engine
    - Timberwolf smart design for easy servicing and maintenance
    - Low maintenance solution
    - Easy accessibility through side panels

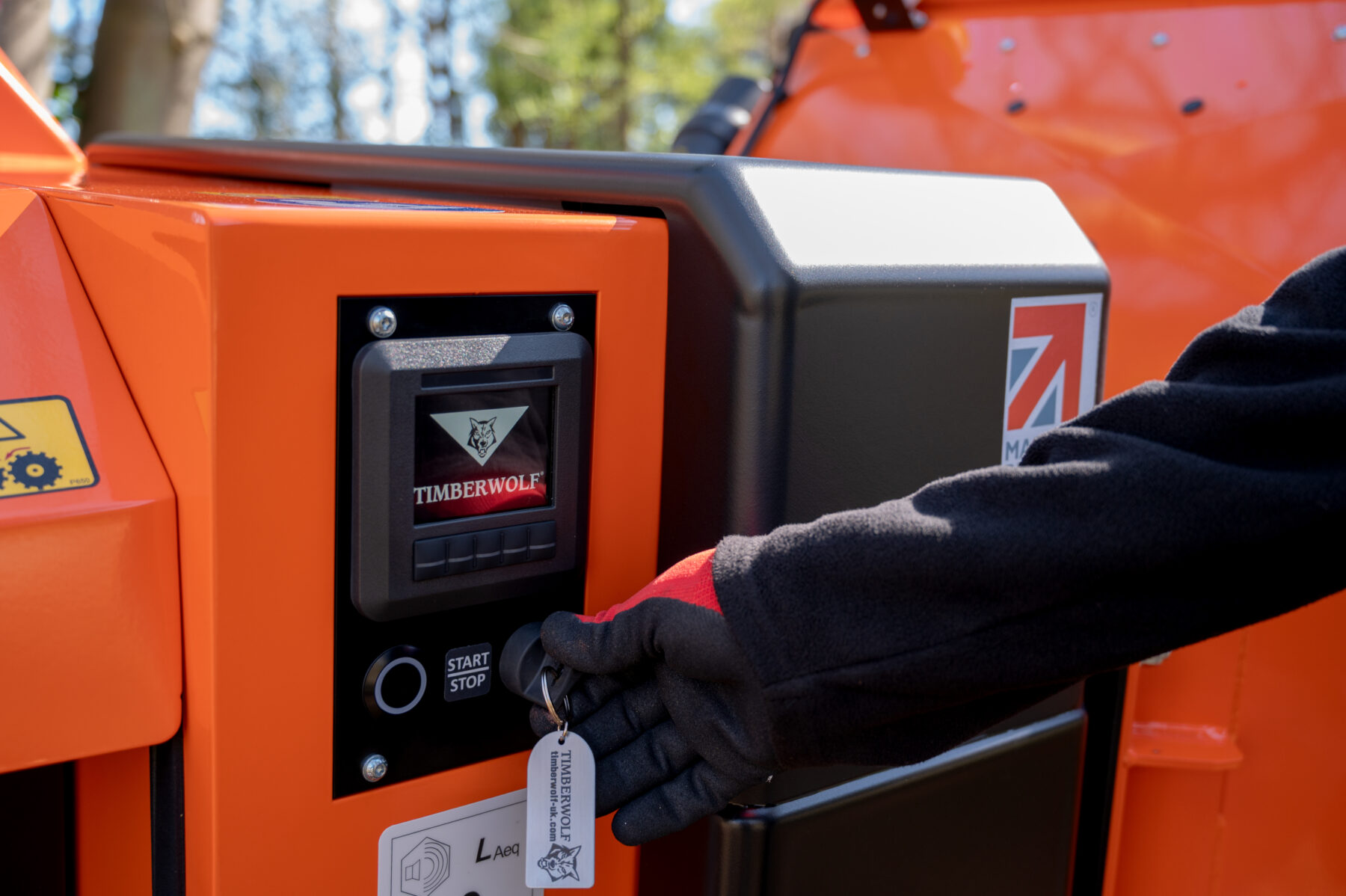

  • INTUITIVE DISPLAY SCREEN

    - Easy to read display even in sunny conditions
    - Adjustable home screen options
    - Simple navigation
    - Environmentally robust (IP67 rated)
    - Rigorously tested solution
    - Clear troubleshooting information

  • INTELLIGENT INFEED DESIGN

    - Industry leading auto-back off feature to minimise downtime
    - Flat tray with wide infeed funnel
    - Readily accepts flat end timber
    - Noticeably little timber kick due to overall smart design

  • CUTTING EDGE ELECTRONIC CONTROL SOFTWARE, IQAN

    - Bluetooth access through mobile phone/laptop when and where required
    - Immediate diagnostics for owners
    - Remote Dealer support when required

  • ENHANCED THROTTLE DESIGN

    - New two speed electronic throttle (cable free)
    - Positioned in the operator zone for quick and easy revs adjustment
    - Integrated into positive engagement buttons
