TW 280HB Hybrid Hydraulic Road Tow Wood Chipper | Timberwolf

TW 280HB HYBRID AN INDUSTRY FIRST

WATCH THE VIDEO

Reducing Emissions OUR VISION

Developed to meet a growing need in the industry, the TW 280HB HYBRID offers peak power of 62hp with Kubota Super Mini Series engine emission levels. Easy to maintain, the TW 280HB HYBRID wood chipper is ideal for companies who are committed to minimising their emissions and fuel usage without compromising on performance.

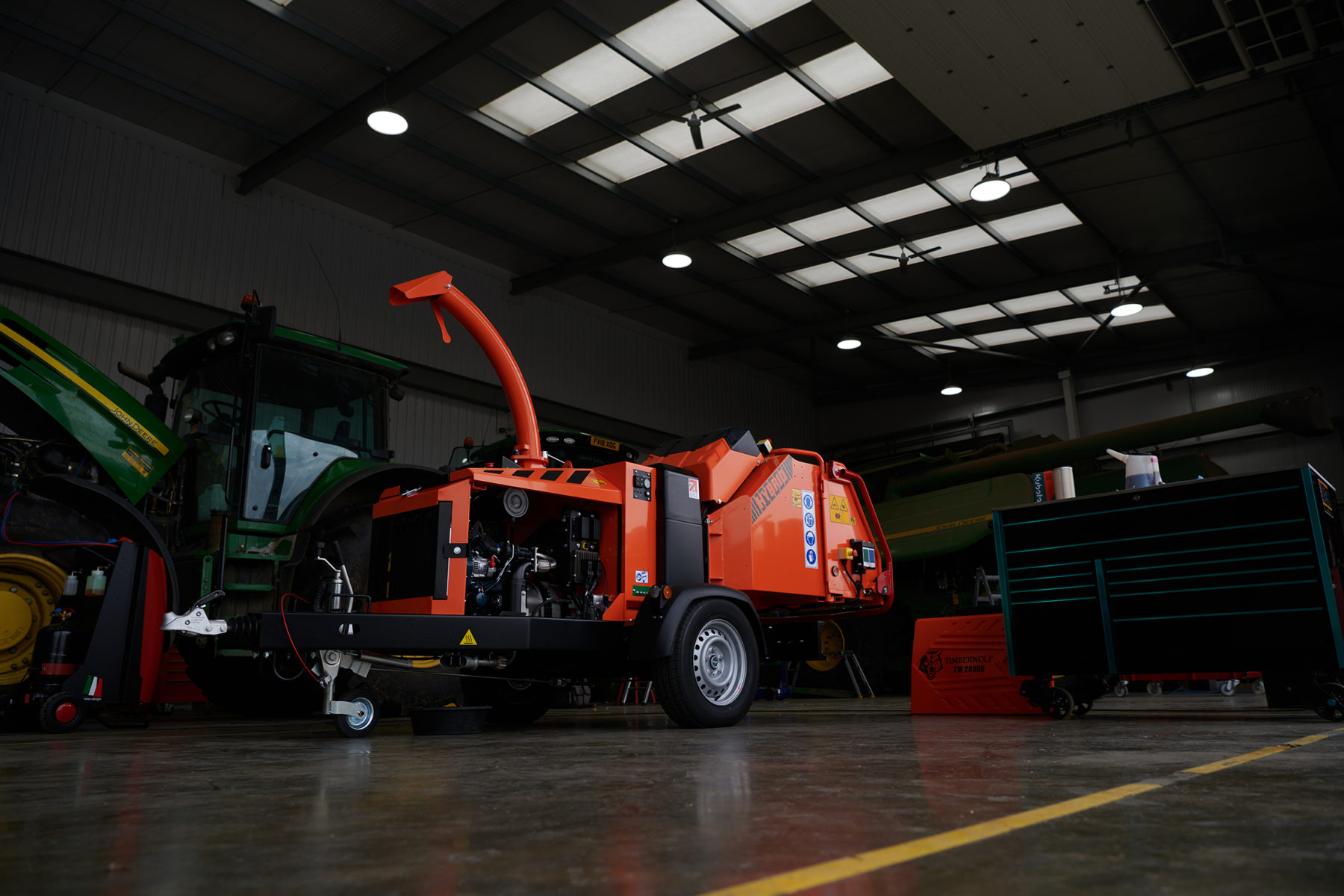

Timberwolf TW 280HB Hybrid wood chipper

FOCUSED ON RELIABILITY

Timberwolf is committed to supplying reliable, easy-to-maintain wood chippers to arborists. The self-charging TW 280HB HYBRID ensures you will not lose chipping performance through the day.

VIEW DATASHEET

TOUGH ON WOOD
KIND ON THE PLANET

The TW 280HB HYBRID’s mild hybrid powertrain meets the dual challenge of exceptional 62hp peak chipping performance whilst using a 24.8hp Kubota Super Mini Series engine for outstanding applied torque.

FEATURES AND BENEFITS

BEST OF BRITISH ENGINEERING

Professional wood chippers need to be fundamentally fit for purpose. As no commercially-viable sustainable solution was available, we decided to lead our own hybrid powertrain development programme.

VIEW BROCHURE
TECHNICAL SPECIFICATION

TW 280HB HYBRID

ENGINEKUBOTA D902-TE4 24.8HP TURBO DIESEL
STARTING METHODELECTRIC
FUELDIESEL
TANK CAPACITY36 LITRES (7.9 GALLONS)
HYBRID POWERTRAIN37.3HP INMOTION GENERATOR SYNCHRONOUS MOTOR (GSM)
WEIGHT1270 KG
LENGTH3862MM (TRAY DOWN) 3332MM (TRAY UP)
WIDTH1653MM
HEIGHT2304MM (1612MM WITH DISCHARGE TUBE REMOVED)
MAXIMUM DIAMETER INFEED210MM (8 1/4")
THROUGHPUT7+ TONNES PER HOUR
FEED METHODTWIN SERIES HYDRAULIC QUAD FORCE ROLLERS
BLADES2 x 158MM QUICK ACCESS, DOUBLE SIDED, FULLY HARDENED, REVERSIBLE
AUTO-BACK-OFF FUNCTIONINCLUDED
DISCHARGE TUBE285° ADJUSTABLE DISCHARGE
WHY CHOOSE THE TW 280HB HYBRID

POWER & EFFICIENCY BEST IN CLASS

TW 280HB HYBRID is our most powerful wood chipper to date, making it the perfect chipper for the most challenging of jobs.

Features:

  • Class-leading peak power of 62hp (46.3kW)
  • Kubota D902-TE4, 24.8hp (18.5kW), turbo diesel engine
  • With swift recharging capability, SECH supercapacitors provide additional energy when required
  • Maintenance-free, 37.3hp (27.8kW) generator synchronous motor (GSM) and supercapacitors
  • All electrical components rated to IP68

Benefits:

  • Processing throughput of over 7 tonnes/hr
  • Emissions and fuel consumption at Kubota Super Mini Series engine levels1
  • Self-charging system: no external charging required
  • No diesel particulate filter (DPF) or AdBlue™ requirement
  • Less fuel quality sensitivity
  • Patented exhaust gas cooler reduces exhaust temperatures by 150°C
  • Enhanced operator diagnostics for easy troubleshooting

PLUS all the elements you would expect from the TW 280 range:

  • EN13525 compliant
  • 280mm x 210mm feed opening (210mm (8 1⁄4”) cutting performance)
  • 2 x quick access double-sided reversible blades
  • Quad force rollers for ultimate crushing power
  • 285° adjustable discharge chute
  • Refined, ergonomic hitch/unhitch experience with connection storage points
  • Timberwolf reliability and simplicity built-in

1 Based on Kubota’s emissions and fuel consumption data (testing over a fixed test cycle under laboratory conditions).

HOW DOES THE TIMBERWOLF HYBRID POWERTRAIN WORK?

SELF-CHARGING POWERTRAIN

When idling, the D902-TE4 turbo diesel engine directs energy into the Inmotion Generator Synchronous Motor (GSM) and drives energy recovery to the rotor (maintaining target RPM). During this period with no chipping load, the SECH supercapacitors are charged by the GSM as instructed by the Chipper Control Unit (CCU).

ENERGY BOOST ON DEMAND

When chipping starts, the rotor RPM naturally drops. If this RPM drops to a pre-determined set-point, the CCU will prompt the demand for additional energy. This is supplied according to the load mode automatically detected by the CCU based on the rate of decay.

CHIPPING POWER WHEN YOU NEED IT MOST!

This additional energy, stored in the SECH supercapacitors, is directed back into the GSM where it now acts to provide additional recovery energy to the rotor. The result is enhanced efficiency and chipping capability for the user when they need it most.

BOOK A FREE DEMO
Timberwolf TW 280HB Hybrid wood chipper
  • 1. KUBOTA ENGINE

    Kubota D902-TE4 turbo diesel engine. Selected for its pedigree and high RPM, this Super Mini Series engine provides outstanding applied torque.

  • 2. EASY OWNERSHIP

    With Timberwolf quality built in, the SECH supercapacitors and motor generator are maintenance-free.

  • 3. SAFETY AS STANDARD

    210 mm (8¼”) Infeed: Tray switch to ensure safe distance, anti-tamper control bar covers, protective devices (top and side), safety curtain, easily accessible isolation switches, improved prop stand.

  • 4. SUPERCAPACITORS

    With unlimited cycle life, supercapacitors store and release energy exceptionally quickly. SECH supercapacitors are smaller than Li-ion batteries and recognised industry-wide for their high reliability and performance.

  • CHALLENGING INDUSTRY EMISSIONS

    Emissions and fuel consumption at Kubota Super Mini Series engine levels.

  • POWER & PERFORMANCE

    Peak power @ 3200 rpm = 62hp (46.3kW). Maximum torque @ 2400 rpm = 172.2 Nm.

  • EASY TO MAINTAIN

    Self-charging system: no external charging required. No diesel particulate filter (DPF) or AdBlue required. Less fuel-quality sensitivity.

  • TIMBERWOLF QUALITY GUARANTEED

    Timberwolf reliability and simplicity with enhanced operator diagnostics for easy troubleshooting.
